208-120 ENBEAM 1U 144C HD CASSETTE F/OPTIC P/PANEL
Excel 208-120 ENBEAM 1U 144C HD CASSETTE F/OPTIC P/PANEL description
208-120 ENBEAM 1U 144C HD CASSETTE F/OPTIC P/PANEL

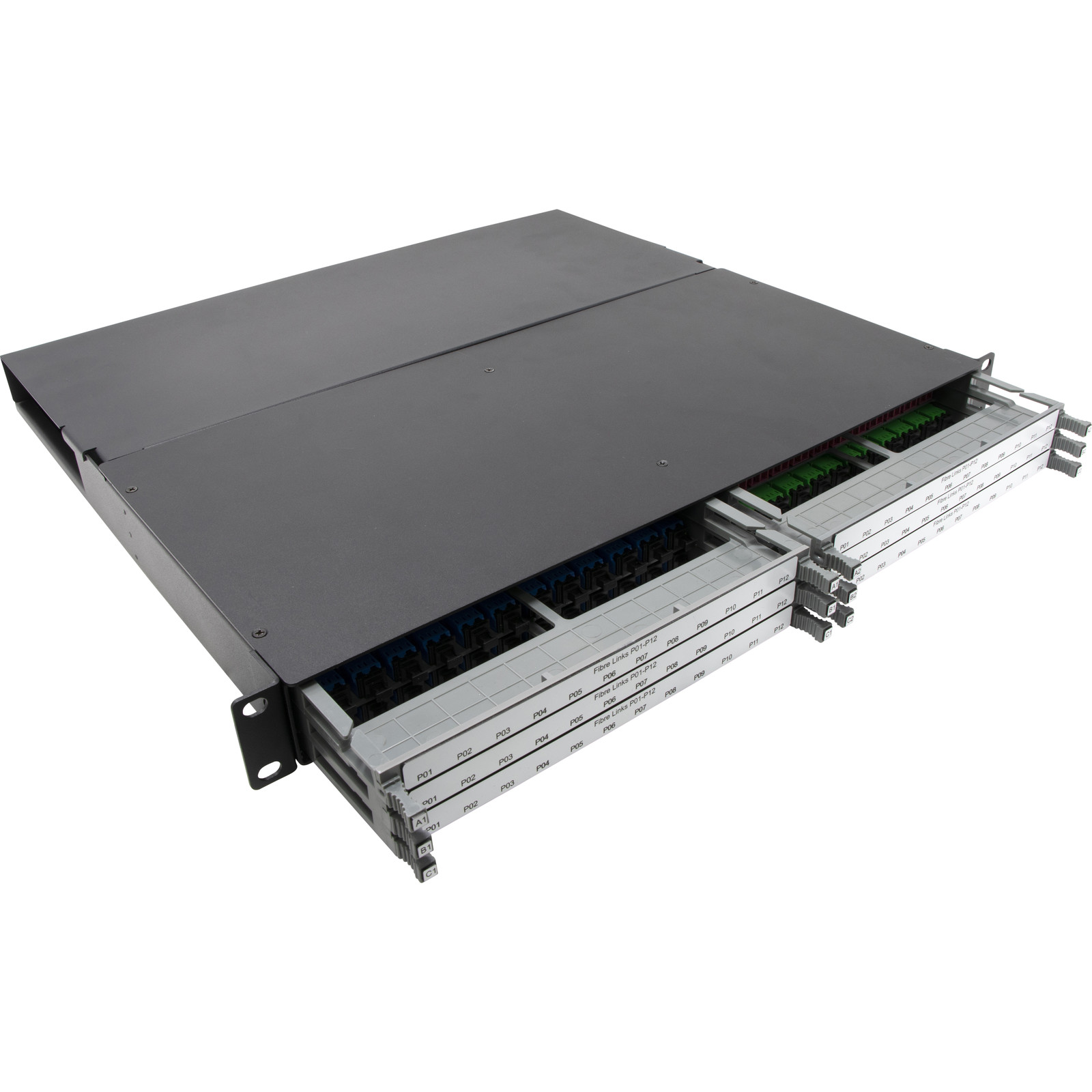

The Excel Enbeam 1U 19" HD panel provides an expandable and innovative cassette based patching solution. Each panel has a maximum capacity of 6 cassettes, which are snapped into position quickly, easily and without tooling. Once in position the cassette can be moved back and forth via the sliding drawer mechanism. LC presentation cassettes contain 24fibres, enabling up to 144 cores to be terminated/patched in 1U of rack space. A variety of cassettes are offered providing a highly flexible system and all cassettes can be mixed and matched as required.
- Brand :Excel
- Part Number :208-120
- Suitable for number of fibre cores :144
- Suitable for number of module inserts :6
- Type of connector external :LC
- Type of connector interior :LC
- Colour :Black
- Mounting method :482.6 mm (19 inch) mounting
- Number of rack units (RU) :1
- Height :44 mm
- Width :482 mm
- Depth :400 mm
1U 19" High Density 144 Fibre Capacity
Variety of cassette options
LC & MTP cassette options
Pre-termination options
Flexible patchlead and cable management
