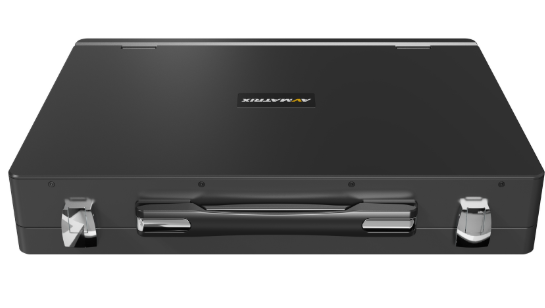

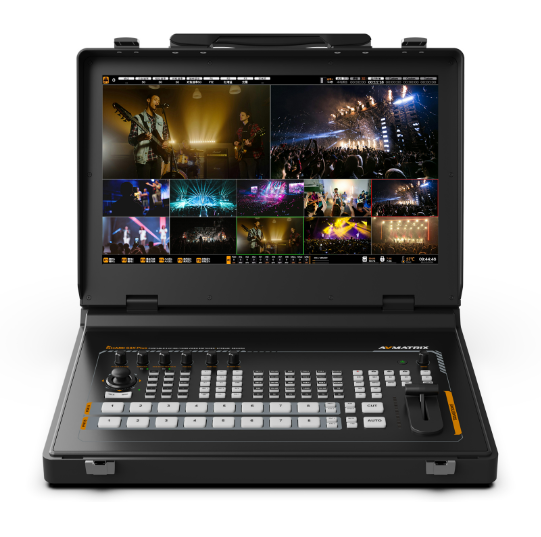

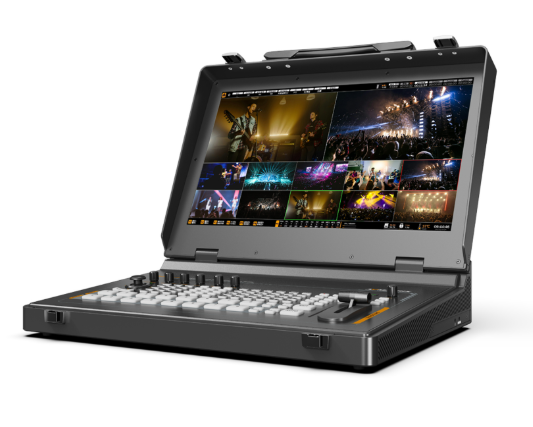

Avmatrix 17.3” 8CH SDI/ HDMI PORTABLE VIDEO SWITCHER SHARK S8X PLUS
AVMATRIX Avmatrix 17.3” 8CH SDI/ HDMI PORTABLE VIDEO SWITCHER SHARK S8X PLUS description
Avmatrix 17.3” 8CH SDI/ HDMI PORTABLE VIDEO SWITCHER SHARK S8X PLUS
Pairing functionality with portability, the AVMATRIX SHARK S8X PLUS is a powerful 8-channel video switcher designed for professionals who need real-time control in live production environments. Featuring eight 3G-SDI and two 4K HDMI inputs, it accommodates a wide range of broadcast and camera sources, while four 3G-SDI, one HDMI multi-view, and two HDMI PGM outputs provide flexible signal routing and convenient monitoring on the built-in 17.3" FHD IPS display.
Ideal for hybrid workflows, the SHARK S8X PLUS supports direct recording to USB drives, SD cards, or SATA SSDs, making it easy to archive or edit footage post-event. Built-in RTMP, SRT, and RTSP streaming ensures reliable live broadcasts to online platforms without external encoders. The switcher features up to six adjustable key layers for complex compositions, including Chroma and LUMA keying, three customizable picture-in-picture windows, and logo overlays. With 10-channel audio mixing and two XLR-1/4" combo inputs with phantom power, the S8X ensures professional-grade sound. PTZ control over Visca, Onvif, or Pelco P/D protocols further streamlines single-operator setups, making the SHARK S8X PLUS a complete solution for events, churches, sports, or streaming studios.
Avmatrix SHARK S8X PLUS, Avmatrix 17.3” video switcher, Avmatrix 8CH SDI HDMI switcher, Avmatrix portable video switcher UAE, Avmatrix video switcher Dubai, Avmatrix video production tools Abu Dhabi, Avmatrix live streaming switcher UAE, Avmatrix broadcasting equipment Dubai, Avmatrix professional AV solutions UAE
- Brand :Avmatrix
- Display :17.3-inch FHD IPS display
- Inputs :6×3G-SDI and 2×SDI/4K HDMI, 1×BNC REF, 1×AUX (internal interface)
- AUX input :Video playback/UVC CAM/network pull stream/NDI
- Outputs :2×HDMI(A/B) PGM (configurable), 4×SDI(A/B) PGM (configurable), 1×HDMI MV (source configurable), 1×REF output
- Recording and playback :USB flash drive/SD card/2.5-inch SATA USBC port for UVC lossless capture
- Transition :T-bar/Auto/Cut
- Audio :8×input video embedded audio & 2×XLR/TRS balanced & 3.5mm stereo input; 3.5mm stereo & XLR balanced output
- ·Recording and playback :USB flash drive/SD card/2.5-inch SATA ·USBC port for UVC lossless capture
Video Switcher for Streaming & Recording
17.3" FHD IPS Multiview Display
Eight SDI & Two 4K HDMI AV Input Ports
Four SDI & Three HDMI AV Output Ports
USB, SD & SATA Recording Support
RTMP, SRT & RTSP Streaming Compatibility
Up to Six Adjustable Keys
Chroma Key, Luma Key, PiP & Logo Overlay
10-Channel Audio Mixing Support
Visca, Onvif & Pelco P/D PTZ Control
