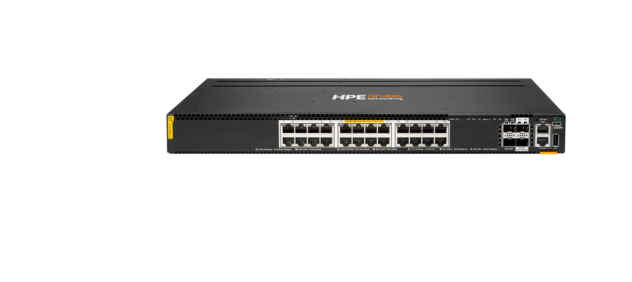

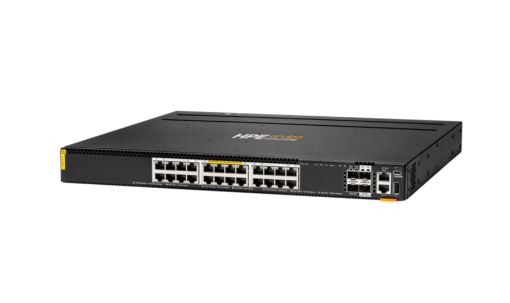

R8S89A HPE Aruba Networking CX 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch
HPE R8S89A HPE Aruba Networking CX 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch description
R8S89A HPE Aruba Networking CX 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch
24x ports SmartRate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
2x 10G/25G/50G SFP ports
2x 10G/25G SFP ports (MACSEC)
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)
1x USB-C Console Port
1x RJ Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle to be used with CX Mobile App
- Brand :HPE
- Part Number :R8S89A
- Power consumption :With JL086A PSU: Hibernation (0 rpm fan): 37W Idle: 90W
- Input voltage :JL670A PSU: 110V-120V/208V-240V JL086A PSU: 100V-240V JL087A PSU: 110V-240V
- Ports :24x ports Smart Rate 100M**/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port (MACSEC)
- Latency :1Gbps: 4.24?Sec, 10Gbps: 1.50?Sec, 25Gbps: 2.91?Sec, 50Gbps1: 3.49?Sec
- Routing/switching capacity :880 Gbps
- Switching capacity :780 Gbps
- Stacking capabilities :Up to 10 switches per stack
- Throughput :580 Mpps
- Memory and processor :Quad Core ARM Cortex™ A72 @ 1.8GHz, 8 GBytes DDR4 32 GBytes eMMC 16 MB Shared Packet Buffer Memory
- PoE capability :Max PoE Power: 2880W
- Weight :6.71 kg (14.8 lbs)
- Dimensions :4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)
Built-in high speed 10/25/40/50/100GbE uplinks (50GbE for DAC connectivity only) with intelligent monitoring and visibility via the Network Analytics Engine.
Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN Dynamic Segmentation enables enhanced security and simple access for users and IoT.
