200-951 EXCEL PATCH PANEL UL for SC-DUP & LC-QUAD ADAPTOR
Excel 200-951 EXCEL PATCH PANEL UL for SC-DUP & LC-QUAD ADAPTOR description
200-951 EXCEL PATCH PANEL UL for SC-DUP & LC-QUAD ADAPTOR

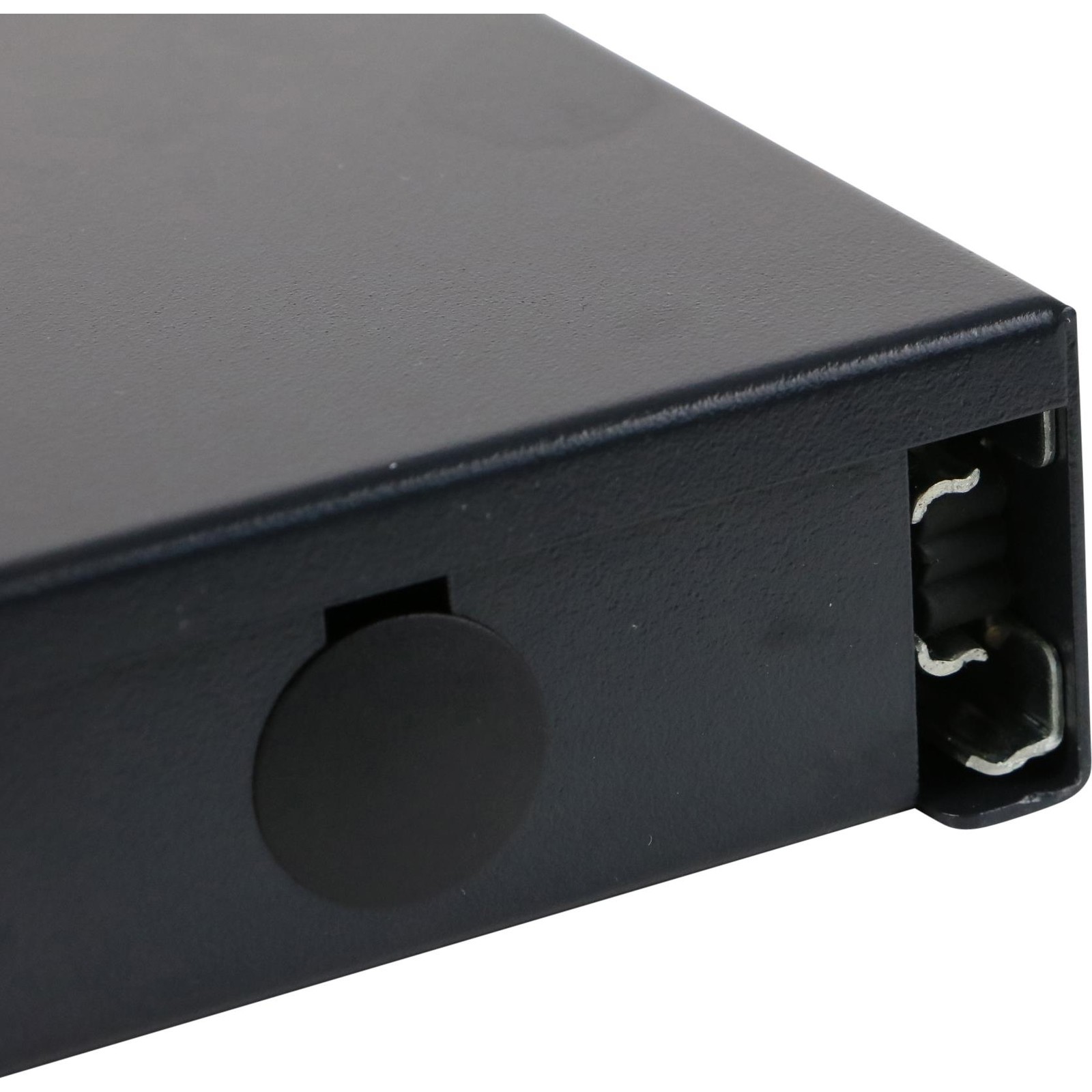

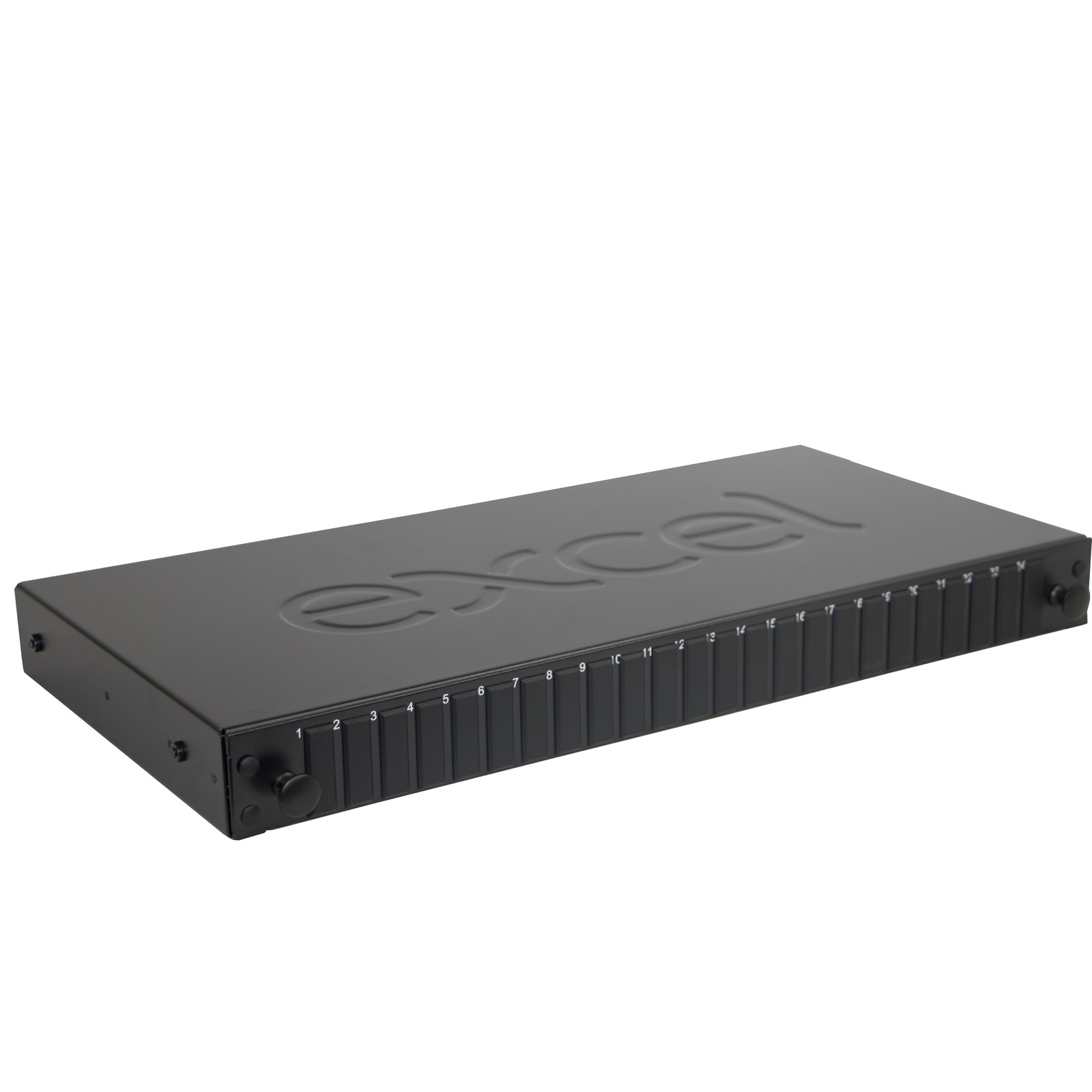

The Excel range of SC patch panels are sliding drawer "tray style" housings suitable for either direct termination or splicing of up to 48 fibres in 1U of rack space. Each panel is manufactured from high quality 2 mm thick steel powder coat finish to provide a strong and durable unit.
To the front of the patch panel the specified number of duplex adaptors are loaded from left to right. Each panel utilises colour coded adaptors, beige, aqua and violet for multimode, blue for singlemode and green for SM APC. Each duplex adaptor accommodates two terminated fibres.
- Brand :Excel
- Part Number :200-951
- Suitable for number of fibre cores :96
- Suitable for number of module inserts :24
- Type of connector external :SC duplex
- Type of connector interior :SC duplex
- Colour :Black
- Ral-number :9005
- Mounting method :482.6 mm (19 inch) mounting
- Number of rack units (ru) :1
- Height :43.5 mm
- Width :483 mm
- Depth :219.5 mm
Load only with flangeless adaptors
Multimode and singlemode
Choice of port density
Management and fixing kit included
Upto 24 duplex adaptors per patch panel
Port identification numbers
Multiple cable entry to rear
