Ruijie 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module MINI-GBIC-LX-SM1310
Ruijie Ruijie 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module MINI-GBIC-LX-SM1310 description
Ruijie 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module MINI-GBIC-LX-SM1310
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs)
Max. power consumption 1.5 W
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Key Features:
As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 1G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).

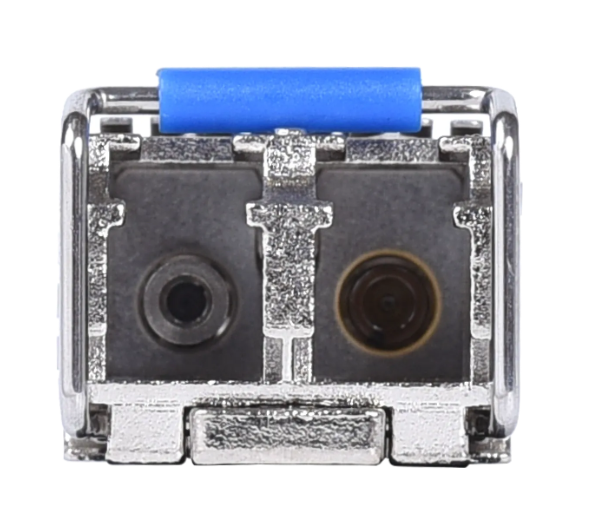

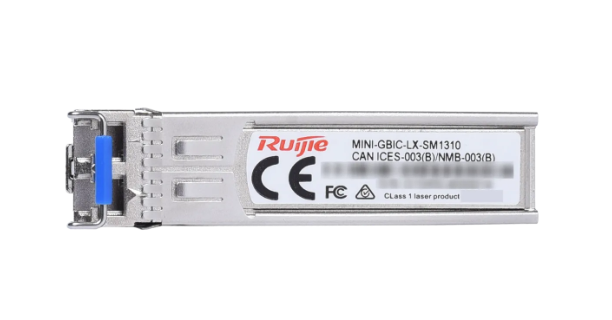

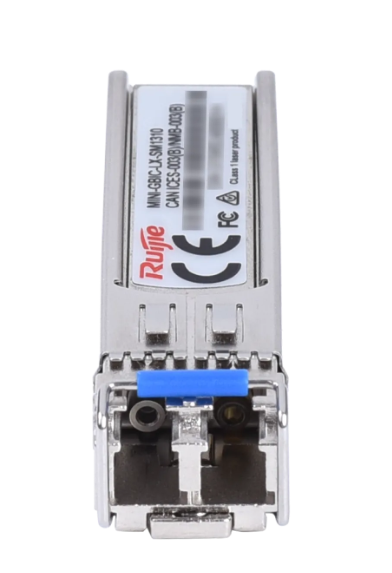

MINI-GBIC-LX-SM1310 Module
The MINI-GBIC-LX-SM1310 is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Ruijie SFP module, MINI-GBIC-LX-SM1310, 1000BASE-LX transceiver, LC SMF optical module, buy SFP Dubai, Ruijie transceiver UAE,
- Brand :Ruijie
- Data rate :1.25 Gbps
- Form factor :SFP
- Connector type :Duplex LC
- Cable type :SMF
- Fiber end face finish type :Ultra Physical Contact (UPC)
- Transmitter type :DFB
- Receiver type :PIN
- Reach :10 km (32,808.40 ft.)
- Power consumption :? 1.5 W
- Dimensions (W x D x H) :56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
- Weight :35 g (0.08 lbs.)
MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs)
