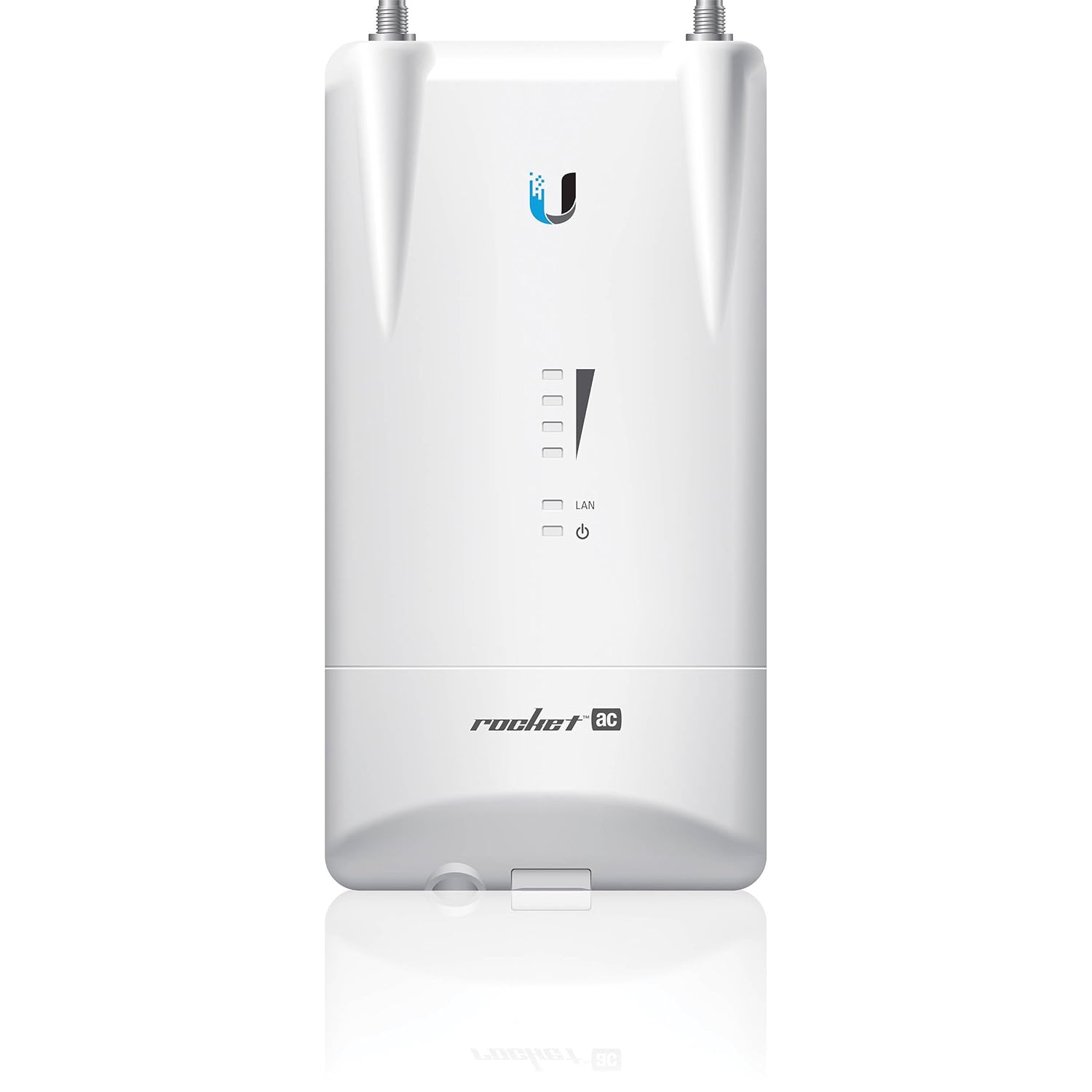

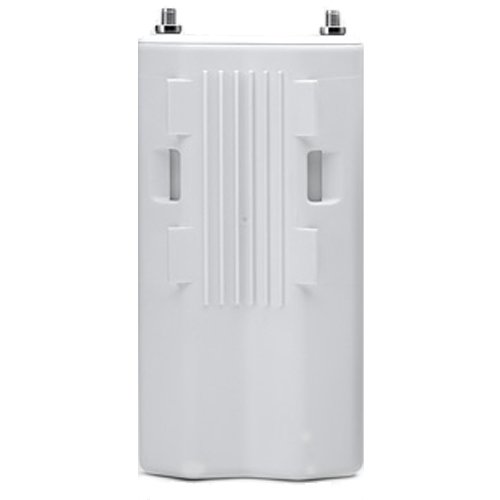

Rocket R5AC-Lite

The R5AC-Lite is a Ubiquiti Networks Rocket Basestation with 2x2 MIMO, passive 24V PoE, and 802.11ac. Rocket 5AC-Lite has a throughput of up to 500+ Mbps. Featuring proprietary airMAX ac technology, the Rocket 5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade. The new ac technology offers improved latency, noise immunity, scalability and significantly increases throughput performance. The Rocket5ac Lite radio can be paired with a RocketDish antenna (SKU: RD-5G31) to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul. Product Includes: (1) Rocket 5AC-Lite (1) Gigabit PoE Adapter (24V, 0.5A) (1) Power Cord (1) Quick Start Guide Product Specifications Dimensions: 162 x 84 x 37mm (6.38 x 3.31 x 1.46") Weight: 250g (8.81oz) Power Supply: 24V, 0.5A Gigabit PoE Adapter Power Method: Passive PoE (Pairs 4,5+;7,8 Return) Max. Power Consumption: 8.5W Operating Frequency: 5150 - 5875MHz Processor: Atheros MIPS 74Kc, 720MHz Memory: 128MB DDR2 SDRAM, 16MB NOR FLASH Networking Interface: (1) 10/100/1000 Mbps RF Connections: (2) RP-SMA (waterproof) LEDs: Power, LAN, (4) Signal Strength Channel Size: PtP Mode: 10/20/30/40/50/60/80MHz PtMP Mode: 10/20/30/40MHz Enclosure Characteristics: Outdoor UV Stabilized Plastic Supported Voltage Range: 20-26VDC ESD/EMP Protection: ±24kV Air / Contact Operating Temperature: -40 to 80°C (-40 to 176°F) Operating Humidity: 5 to 95% non-condensing Shock and Vibration: ETSI300-019-1.4 Wireless Approvals: FCC, IC, CE RoHS Compliance: Yes Modes:Access Point, Station Services: Web Server, SNMP, SSH Server, Telnet, Ping
