100-080 EXCEL CAT6 U/UTP 24 AWG CABLE 305M VIOLET Dca
Excel 100-080 EXCEL CAT6 U/UTP 24 AWG CABLE 305M VIOLET Dca description
100-080 EXCEL CAT6 U/UTP 24 AWG CABLE 305M VIOLET Dca

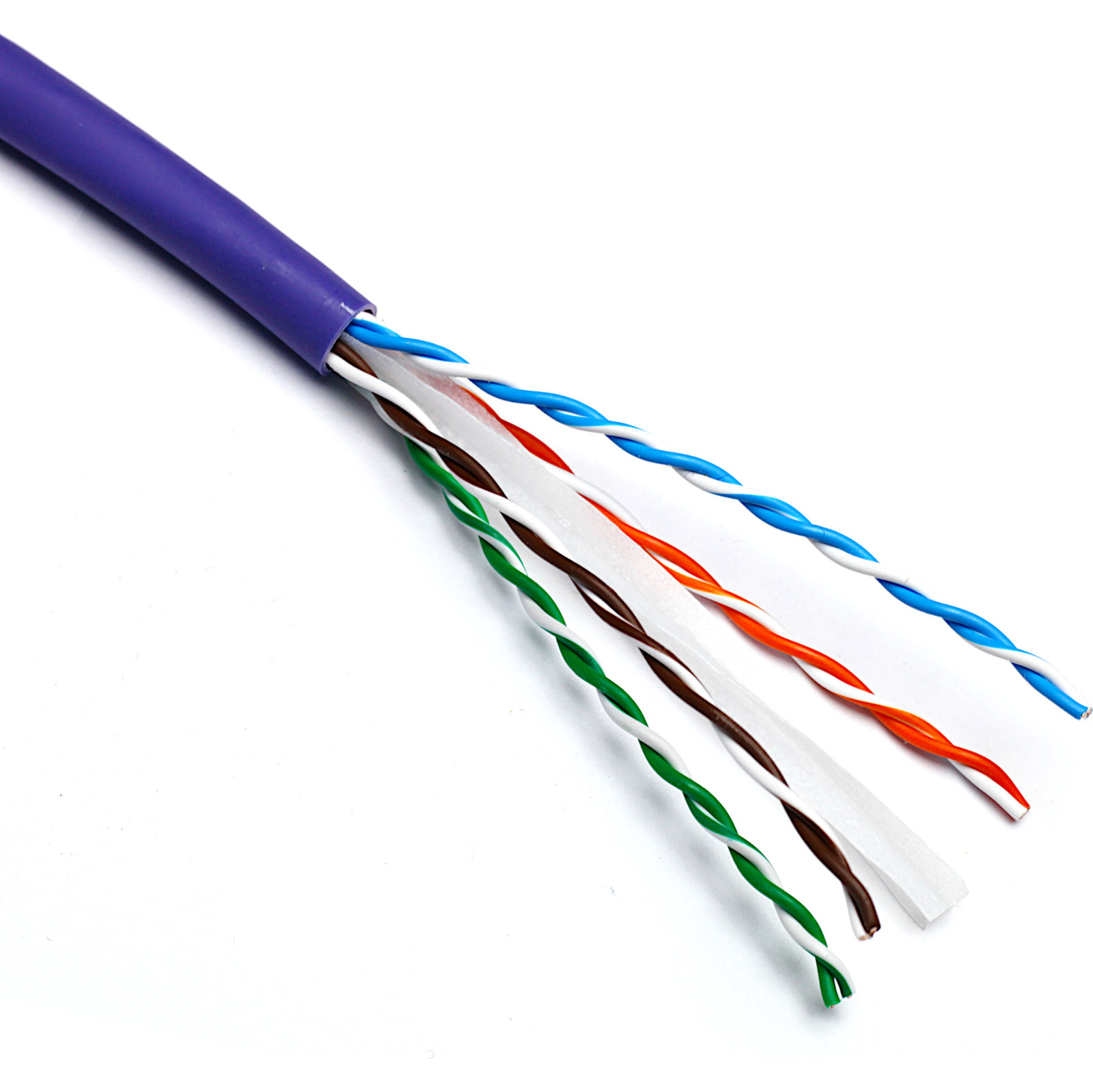

Excel solid Cat6 ethernet cable U/UTP 24AWG LSOH CPR Dca manufactured and tested to the TIA/EIA 568?B.2?1, EN50173?1 and ISO/ IEC 11801 Cat 6 specifications, 305m or 500m. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.
These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a LSOH sheath.
- Brand :Excel
- Part Number :100-080
- Conductor surface :Bare
- Awg size :24
- Total number of cores :8
- Conductor category :Class 1 = solid
- Stranding element :Pairs
- Specification core insulation :Polyethylene (PE)
Cat6 24AWG Copper Cable
U/UTP No Overall Screening
No Conductor Screening
Outer sheath colour Violet
Reaction-to-fire class according to EN 13501-6: Dca
Smoke development class according to EN 13501-6: s2
